Festo CPV14-M1H-5JS-1/8

SKUCPV14-M1H-5JS-18

ManufacturerFesto

CategoryIndustrial automation components

6-month warranty

Available (1-2 days): 13 units

Select Condition

Quantity

Net price (1 pc.):

57,46PLN

Before ordering, make sure the part fits your device.

Free consultation

Delivery

Trusted partners:

International shipping

Dedicated account manager

Real-time tracking

Description

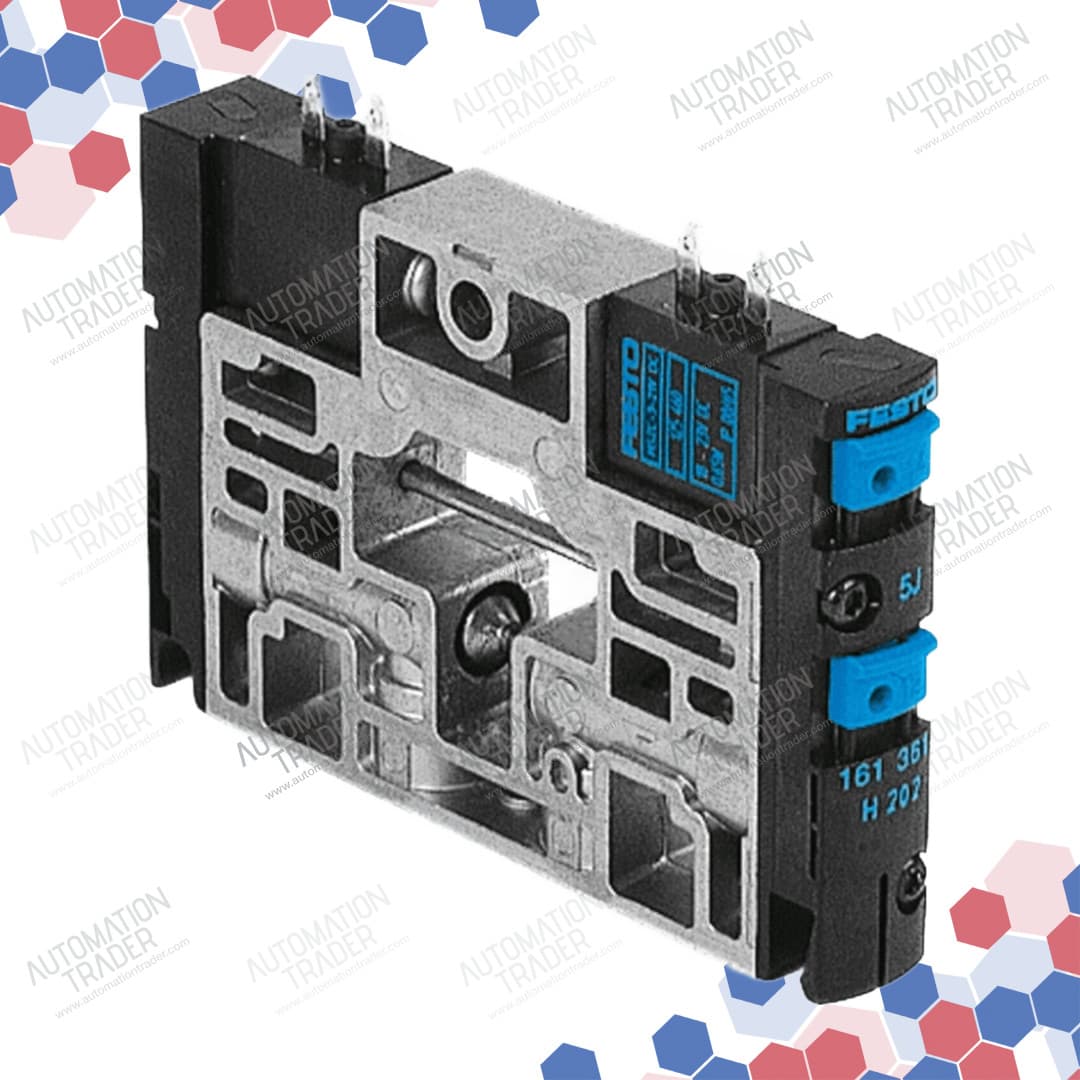

The Festo CPV14-M1H-5JS-1/8 is a 5/2-way bistable solenoid valve designed for efficient control of compressed air in industrial automation systems. Operating at 24 V DC, it features a valve size of 14 mm and a standard nominal flow rate of 800 l/min, ensuring reliable performance in various applications. The valve operates within a pressure range of -0.9 to 10 bar and is constructed with a piston gate design, offering durability and consistent operation. With an IP65 degree of protection, it is suitable for use in environments where dust and water resistance are essential. The valve's nominal width is 6 mm, and it utilizes a soft sealing principle for effective sealing. The CPV14-M1H-5JS-1/8 can be mounted in any position, providing flexibility in installation. It also includes a manual override function, available in both detenting and non-detenting versions, allowing for manual operation when necessary. The valve is pilot-controlled and supports both external and internal pilot air supply ports, accommodating various system configurations. Its non-reversible flow direction and positive overlap lap design contribute to its reliable performance. The valve requires a pilot pressure between 3 to 8 bar and has a b-value of 0.42 and a C-value of 3.2 l/sbar, indicating its efficiency in controlling air flow. The switching time reversal is 12 ms, and it has a duty cycle of 100% when used with holding current reduction. The electrical power consumption is 0.65 W, making it energy-efficient. The valve is compatible with compressed air as per ISO 8573-1:2010 [7:4:4], and lubricated operation is possible, which is required for further use. The CPV14-M1H-5JS-1/8 has been tested for vibration resistance according to FN 942017-4 and EN 60068-2-6, and for shock resistance according to FN 942017-5 and EN 60068-2-27, ensuring its reliability in demanding industrial environments.
