Omron C200HW-PA204S

Name: C200HW-PA204S
Brand: Omron
SKU: C200HW-PA204S
Price: 780 PLN
Availability: InStock

SKUC200HW-PA204S

ManufacturerOmron

CategoryIndustrial automation components

6-month warranty

Available (1-2 days): 1 units

Select Condition

Quantity

Net price (1 pc.):

780,00PLN

Before ordering, make sure the part fits your device.

Free consultation

Delivery

Trusted partners:

International shipping

Dedicated account manager

Real-time tracking

Description

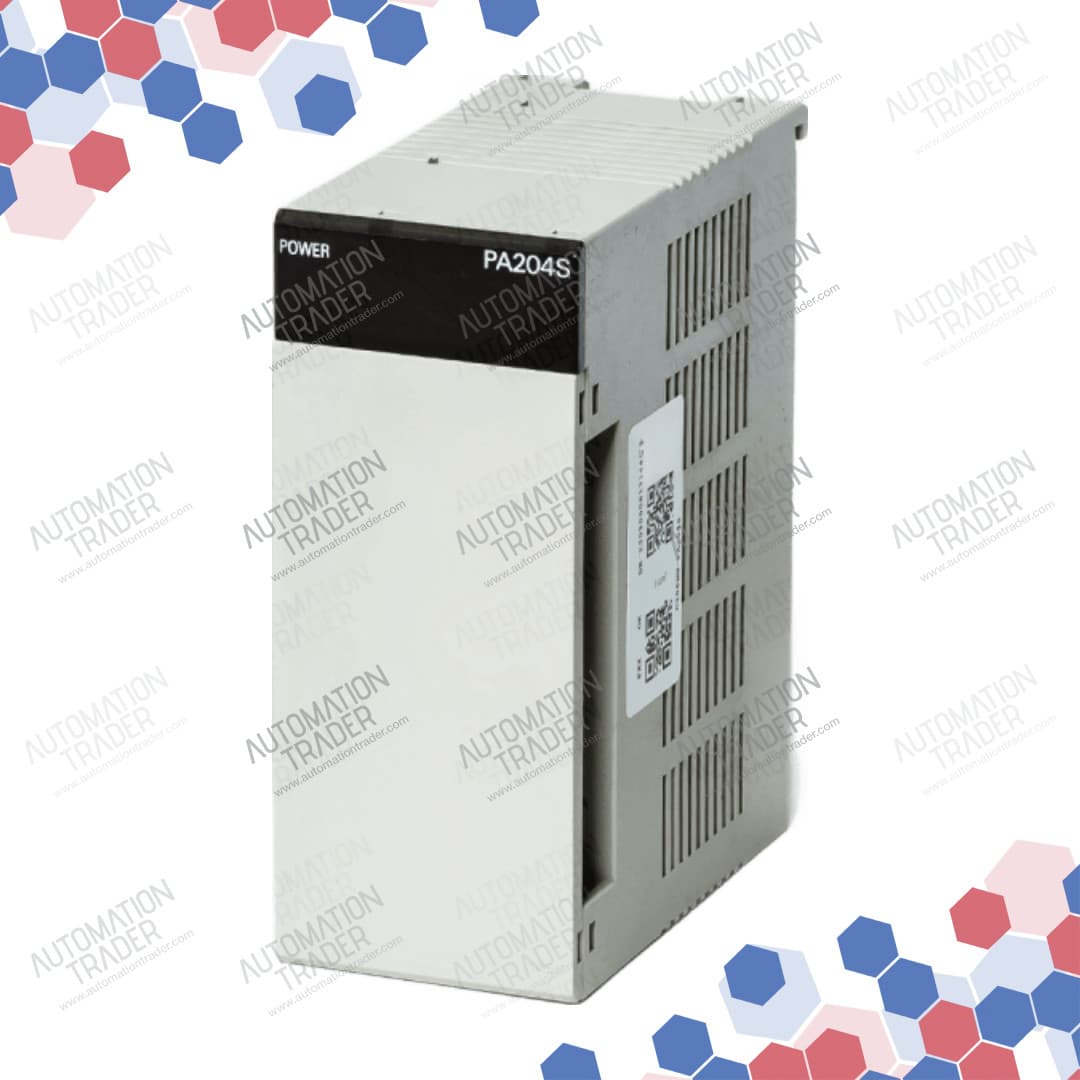

The Omron C200HW-PA204S is a power supply module from the C200HW series, designed for use with Omron's C200H and CS1 series programmable controllers. It accepts an input voltage of 100 to 120 V AC or 200 to 240 V AC at 50/60 Hz, with an operating voltage range of 85 to 132 V AC or 170 to 264 V AC. The module provides a 5 V DC output with a capacity of 4.6 A, including CPU unit power, and a 26 V DC output with a capacity of 0.6 A. Additionally, it offers a 24 V DC service supply with a capacity of 0.8 A. The power consumption is a maximum of 120 VA, and the inrush current is 30 A maximum for 100 to 120 V AC input and 40 A maximum for 200 to 240 V AC input. The operating temperature range is 0°C to 55°C, and the module has an ingress protection rating of IP30. It is approved by CE, CSA, Lloyd, NK, and UL.

Specifications

Weight	0.45 kgs
Display Name	C200HW-PA204S
Description	Power supply unit, 100-120/200-240 VAC, including 0.8 A 24 VDC service supply
ETIM Class	EC000599
EAN	4536854303548.0
Group	BA
Fam	BAE
Country of Origin	JPN
Customs Tariff Code	8504403000.0
OC Code	3GHW1007R
Second Item Number	C200HWPA204SJPN
Category	Sterownik PLC C200H-Alfa
Stat Fam	2YGI
Stat Fam description	Power Supply
Publication sort	1CCB1
Primary Package Length	150
Primary Package Width	130
Primary Package Depth	71
Dimensions	150mm x 130mm x 71mm
Primary Package Weight	484 g
