Siemens 3RV2011-0FA15

Siemens 3RV2011-0FA15 3rv2011-0fa15 product image 1
SKU3RV2011-0FA15
ManufacturerSiemens
CategoryIndustrial automation components
6-month warranty
Available (1-2 days): 4 units
Select Condition
Quantity
1
Net price (1 pc.):
166,64PLN
Before ordering, make sure the part fits your device.
Free consultation
Delivery
Trusted partners:
DHLUPSTNTFedEx
International shipping
Dedicated account manager
Real-time tracking

Description

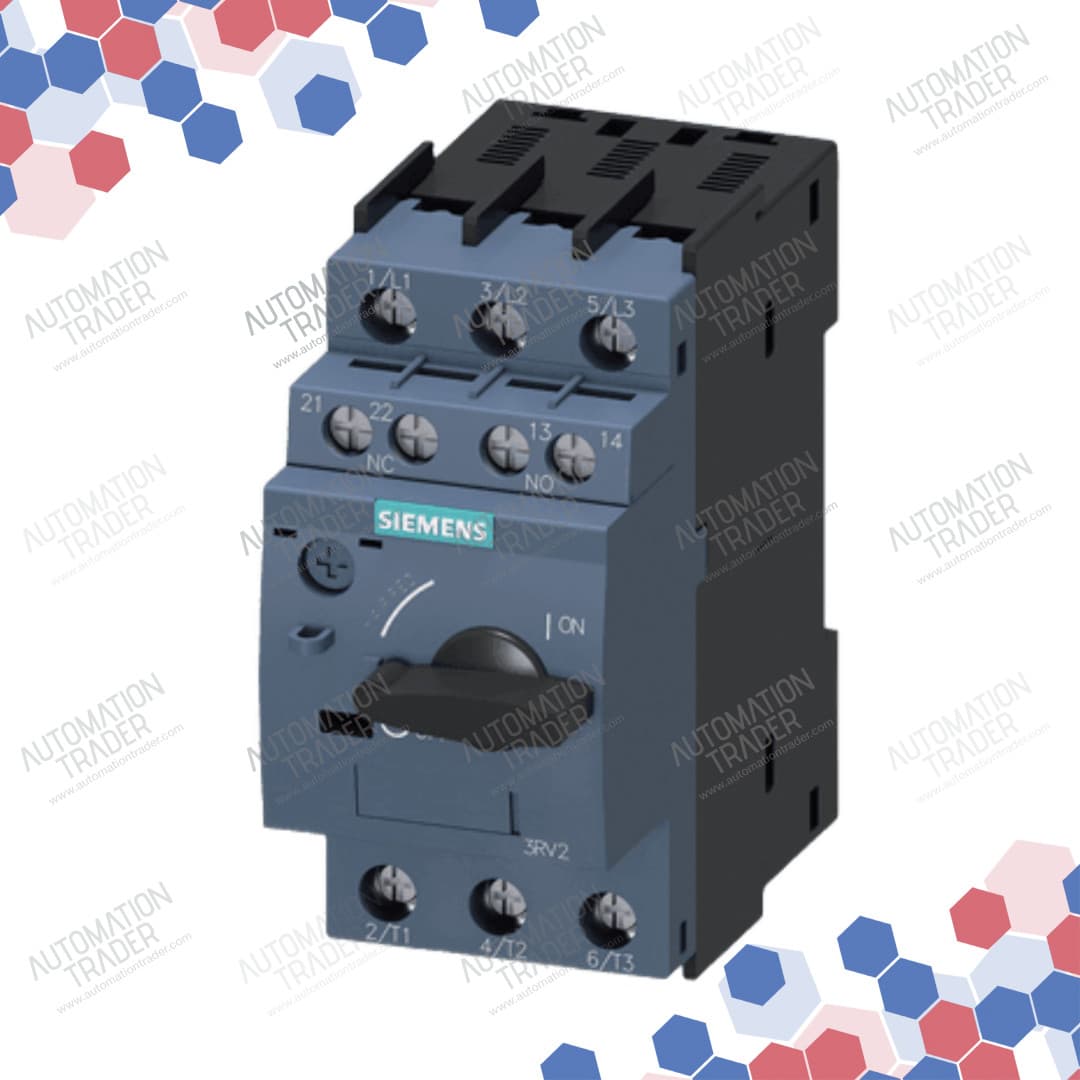

The Siemens 3RV2011-0FA15 is a motor protection circuit breaker from the SIRIUS 3RV2 series, designed to safeguard motors against overloads and short circuits. It features a thermal overload release with an adjustable current setting range of 0.35 to 0.5 A, and a magnetic short-circuit release set at 6.5 A. The device is rated for AC operation up to 690 V and is suitable for motor protection applications requiring a Class 10 tripping characteristic. It includes a transverse auxiliary switch with one normally open (NO) and one normally closed (NC) contact, providing additional control and signaling capabilities. The circuit breaker is mounted using screw terminals and is designed for DIN rail mounting, ensuring secure and reliable installation. With a compact size S00, it is ideal for applications with limited space. The device operates within an ambient temperature range of -20 to +60 °C and has a mechanical service life of approximately 100,000 operating cycles, ensuring long-term reliability in industrial environments.

Specifications

Weight
0.28 kgs
Group Classification Key
R711
List of Characteristics
CC-IC10
Metals Coefficient
LAP-----
ETIM 7
EC000074
UPC
662643921540.0
Aluminium Weight
0
Argent Weight
0
Customs Tariff Code
85362010
Copper Weight
0
EAN
4011209840935.0
Quantity in Package
1
Part Number
5332
AL Field
N
Product Description
WYŁĄCZNIK SILNIKOWY SZ S00, DO OCHRONY SILNIKA, CLASS 10, WYZW. TERM. 0.35...0.5A, WYZW. ZWARC.6.5A PRZYŁ. ŚRUBOWE, STANDARDOWA ZDOLNOŚĆ ŁĄCZENIOWA, Z POPRZECZNYMI STYKAMI POM. 1NO+1NC
Comparative Metals Coefficient
01.10.2009
REACH
Lead CAS-Nr. 7439-92-1
Unit of Measure
ST
Packaging Length
102,00
Packaging Width
49,00
Packaging Height
102,00
Packaging Size
MM
Product ID
3RV2011-0FA15
Compliance
Produkt zgdony z RoHS od: 01.10.2009
Configurable Product
False
Country of Origin
DE
ECCN
N
eClass 6
27-37-04-01
eClass 7.1
27-37-04-01
eClass 8
27-37-04-01
eClass Version 9
27-37-04-01
eClass Version 9.1
27-37-04-01
