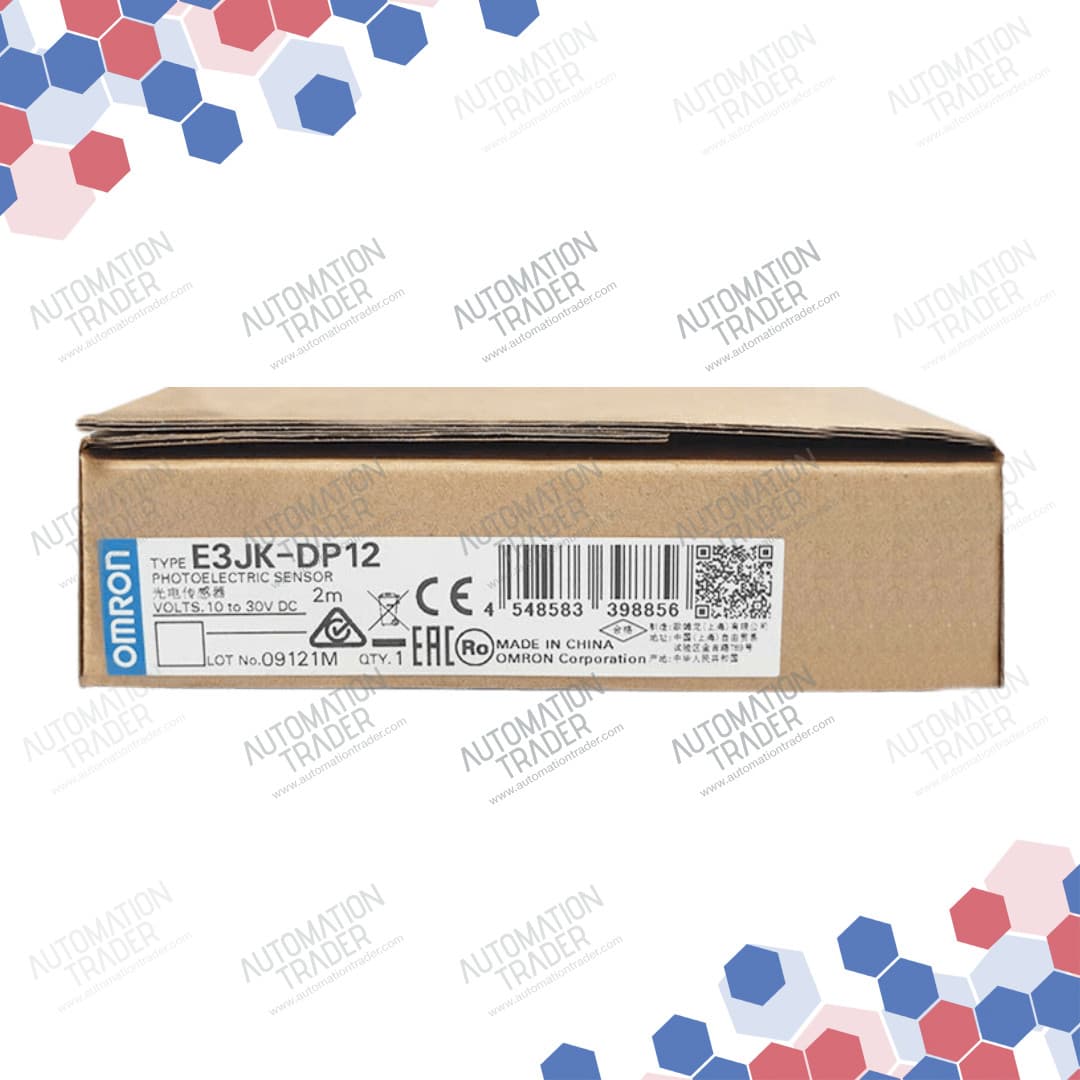

Omron E3JK-DP12

Name: E3JK-DP12
Brand: Omron
SKU: E3JK-DP12
Price: 258.58 PLN
Availability: InStock

SKUE3JK-DP12

ManufacturerOmron

CategoryIndustrial automation components

6-month warranty

Available (1-2 days): 2 units

Select Condition

Quantity

Net price (1 pc.):

258,58PLN

Before ordering, make sure the part fits your device.

Free consultation

Delivery

Trusted partners:

International shipping

Dedicated account manager

Real-time tracking

Description

The Omron E3JK-DP12 is a diffuse-reflective photoelectric sensor designed for precise object detection in industrial automation applications. Featuring a red LED light source with a wavelength of 624 nm, it offers a sensing distance of up to 300 mm when detecting white paper (100 × 100 mm). The sensor operates with a PNP open collector output, supporting a maximum load voltage of 30 VDC and a maximum load current of 100 mA, with a residual voltage of 3 V or less. It is powered by a DC voltage ranging from 10 to 30 V, including ripple (p-p) up to 10%. The sensor supports both Light-ON and Dark-ON operation modes, selectable via a switch. With a response time of 1 ms, it ensures rapid detection. The housing is constructed from ABS, providing durability and resistance to environmental factors. The sensor is rated IP64, indicating protection against dust and water splashes. It is equipped with a 2-meter pre-wired cable for easy installation. The operating temperature range spans from -25°C to 55°C, and the storage temperature range is from -40°C to 70°C, both without condensation or freezing. The operating humidity range is 35% to 85%, and the storage humidity range is 35% to 95%, both without condensation. The sensor includes protective circuits for output short-circuit, output reverse polarity, and power supply reverse polarity. It also features an operation indicator (orange) and a stability indicator (green) for user-friendly monitoring. This sensor is suitable for applications requiring reliable and precise object detection in various industrial environments.

Specifications

Sensing Method	Diffuse-reflective
Sensing Distance	300 mm
Output Type	PNP open collector
Power Supply Voltage	10 to 30 VDC
Response Time	1 ms
Housing Material	ABS
Protection Rating	IP64
Cable Length	2 meters
Operating Temperature Range	-25°C to 55°C
Storage Temperature Range	-40°C to 70°C
Operating Humidity Range	35% to 85%
