Siemens 3NA3836

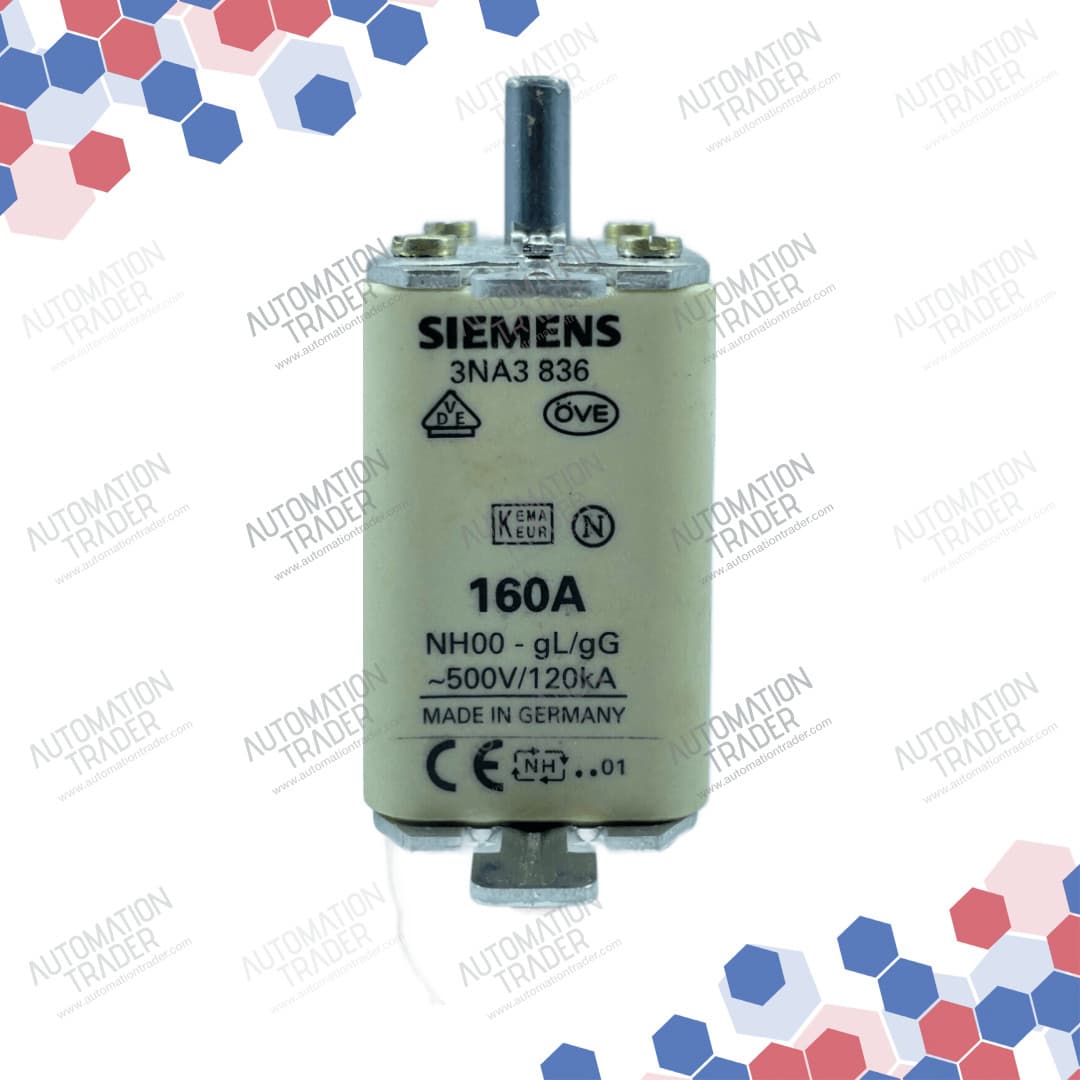

Siemens 3NA3836 3na3836 product image 1
SKU3NA3836
ManufacturerSiemens
CategoryIndustrial automation components
12-month warranty
Available (1-2 days): 7 units
Select Condition
Quantity
1
Net price (1 pc.):
33,71PLN
Before ordering, make sure the part fits your device.
Free consultation
Delivery
Trusted partners:
DHLUPSTNTFedEx
International shipping
Dedicated account manager
Real-time tracking

Description

The Siemens 3NA3836 is a Low Voltage High Rupturing Capacity (LV HRC) fuse element designed for industrial applications. It features a current rating of 160 A and is suitable for both AC and DC circuits, with voltage ratings of 500 V AC and 250 V DC, respectively. This fuse is classified as gG, indicating it provides protection against both overload and short-circuit conditions. The NH00 size ensures compatibility with standard fuse bases. Notable features include a front indicator for fuse status and non-insulated live grip lugs for secure handling. The fuse operates within an ambient temperature range of -5°C to 40°C and has a power loss of 10.5 W at rated current. It is compliant with IEC 60269-1 standards and has a breaking capacity of 120 kA at 500 V AC and 25 kA at 250 V DC. The 3NA3836 fuse is manufactured by Siemens, a leading provider of industrial automation components.

Specifications

Weight
0.20 kgs
Country of Origin
GR
ECCN
N
eClass 6
27-14-20-05
eClass 8
27-14-20-05
eClass 7.1
27-14-20-05
eClass Version 9
27-14-20-05
List of Characteristics
LV10.1
ETIM 7
EC000055
eClass Version 9.1
27-14-20-05
Group Classification Key
P310
Metals Coefficient
L-P-----
Packaging Length
95,00
Product ID
3NA3836
AL Field
N
Aluminium Weight
0
Argent Weight
0
Customs Tariff Code
85361090
Copper Weight
0
EAN
4001869020013.0
Quantity in Package
1
Part Number
5530
Compliance
Produkt zgdony z RoHS od: 01.06.2006
Configurable Product
False
Packaging Height
67,00
Packaging Width
83,00
Packaging Size
MM
Product Description
WKŁADKA TOPIKOWA NH, 500V, WLK. 00, 160A, KLASA gG, WERSJA STANDARD, ZACZEPY NIEIZOLOWANE,
Comparative Metals Coefficient
01.06.2006
Unit of Measure
ST
Article Number
3NA3836
Product Family
Ordering Data Overview
Product Group
5530
Catalog ID
LV10.1
Net Weight
0.441 lb
Packaging Dimensions
3.268 x 3.74 x 2.638
Package Size Unit of Measure
Inch
Quantity Unit
1 Piece
Packaging Quantity
1 pieces
Commodity Code
85361090
Current Rating
160 A
Voltage Rating AC
500 V
Voltage Rating DC
250 V
Fuse Characteristic
GG
NH Size
00
