Siemens 3NA7824

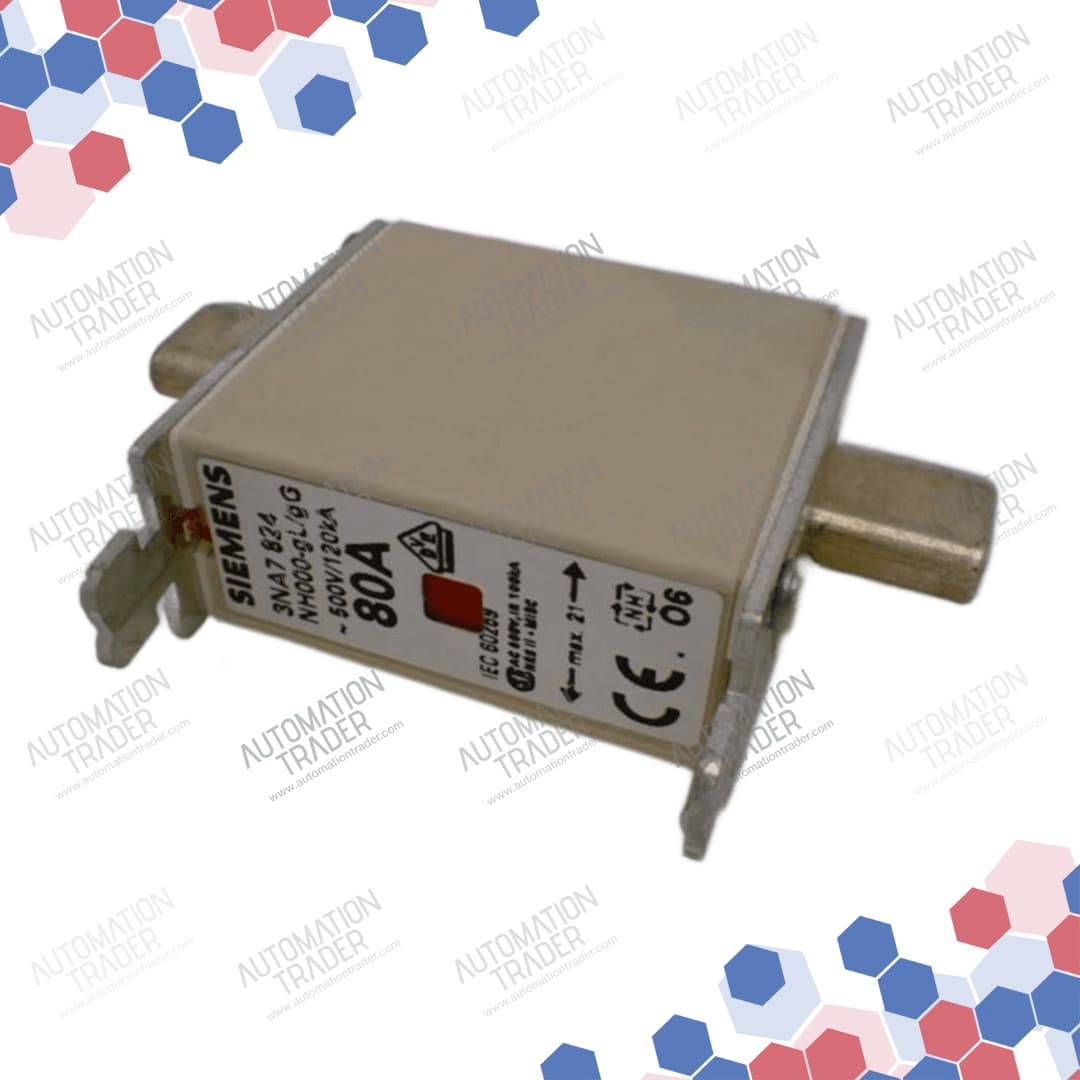

Siemens 3NA7824 3na7824 product image 1
SKU3NA7824
ManufacturerSiemens
CategoryIndustrial automation components
12-month warranty
Available (1-2 days): 1 units
Select Condition
Quantity
1
Net price (1 pc.):
29,03PLN
Before ordering, make sure the part fits your device.
Free consultation
Delivery
Trusted partners:
DHLUPSTNTFedEx
International shipping
Dedicated account manager
Real-time tracking

Description

The Siemens 3NA7824 is a low-voltage high rupturing capacity (LV HRC) fuse link designed for industrial applications requiring reliable overcurrent protection. This fuse features a current rating of 80 A and is suitable for both alternating current (AC) and direct current (DC) circuits, with voltage ratings of 500 V AC and 250 V DC, respectively. It is classified under the NH000 size according to DIN EN 60269-1 standards, making it compatible with NH fuse bases. The fuse operates within an ambient temperature range of -5°C to 40°C and is rated for an IP20 protection class when connected. Its design includes blade contacts, a combination alarm indicator, and non-corroding, silver-plated switching contacts. The fuse is equipped with live grip lugs for secure mounting and is intended for vertical installation. The net weight of the fuse is approximately 128 grams.

Specifications

Aluminium Weight
0
Argent Weight
0
Customs Tariff Code
85361090
Copper Weight
0
EAN
4001869071695.0
Quantity in Package
1
Part Number
5530
UPC
754554932804.0
Weight
128
Compliance
Produkt zgdony z RoHS od: 01.06.2006
Product Description
WKŁADKA TOPIKOWA NH, 500V, WLK. 000, 80A, KLASA Gg, Z PASKOWYM SYGN. PRZEPALENIA, ZACZEPY NIEIZOLOWANE,
Product ID
3NA7824
AL Field
N
Configurable Product
False
Country of Origin
GR
ECCN
N
eClass 6
27-14-20-05
eClass 7.1
27-14-20-05
eClass 8
27-14-20-05
eClass Version 9
27-14-20-05
eClass Version 9.1
27-14-20-05
ETIM 7
EC000055
Group Classification Key
P310
List of Characteristics
LV10.1
Metals Coefficient
L-P-----
Packaging Length
84,00
Packaging Width
65,00
Packaging Height
62,00
Packaging Size
MM
Comparative Metals Coefficient
01.06.2006
Unit of Measure
ST
Article Number
3NA7824
Product Family
Ordering Data Overview
Catalog ID
LV10.1
Packaging Dimensions
2.559 x 3.307 x 2.441
Package Size Unit of Measure
Inch
Quantity Unit
1 Piece
Voltage Rating AC
500 V
Voltage Rating DC
250 V
Product Group
5530
Net Weight
0.287 lb
Packaging Quantity
1 pieces
Commodity Code
85361090
Current Rating
80 A
NH Size
000
Fuse Characteristic
GG
