Siemens 3RV1011-1DA20

Name: 3RV1011-1DA20
Brand: Siemens
SKU: 3RV1011-1DA20
Price: 109.18 PLN
Availability: InStock

SKU3RV1011-1DA20

ManufacturerSiemens

CategoryIndustrial automation components

6-month warranty

Available (1-2 days): 3 units

Select Condition

Quantity

Net price (1 pc.):

109,18PLN

Before ordering, make sure the part fits your device.

Free consultation

Delivery

Trusted partners:

International shipping

Dedicated account manager

Real-time tracking

Description

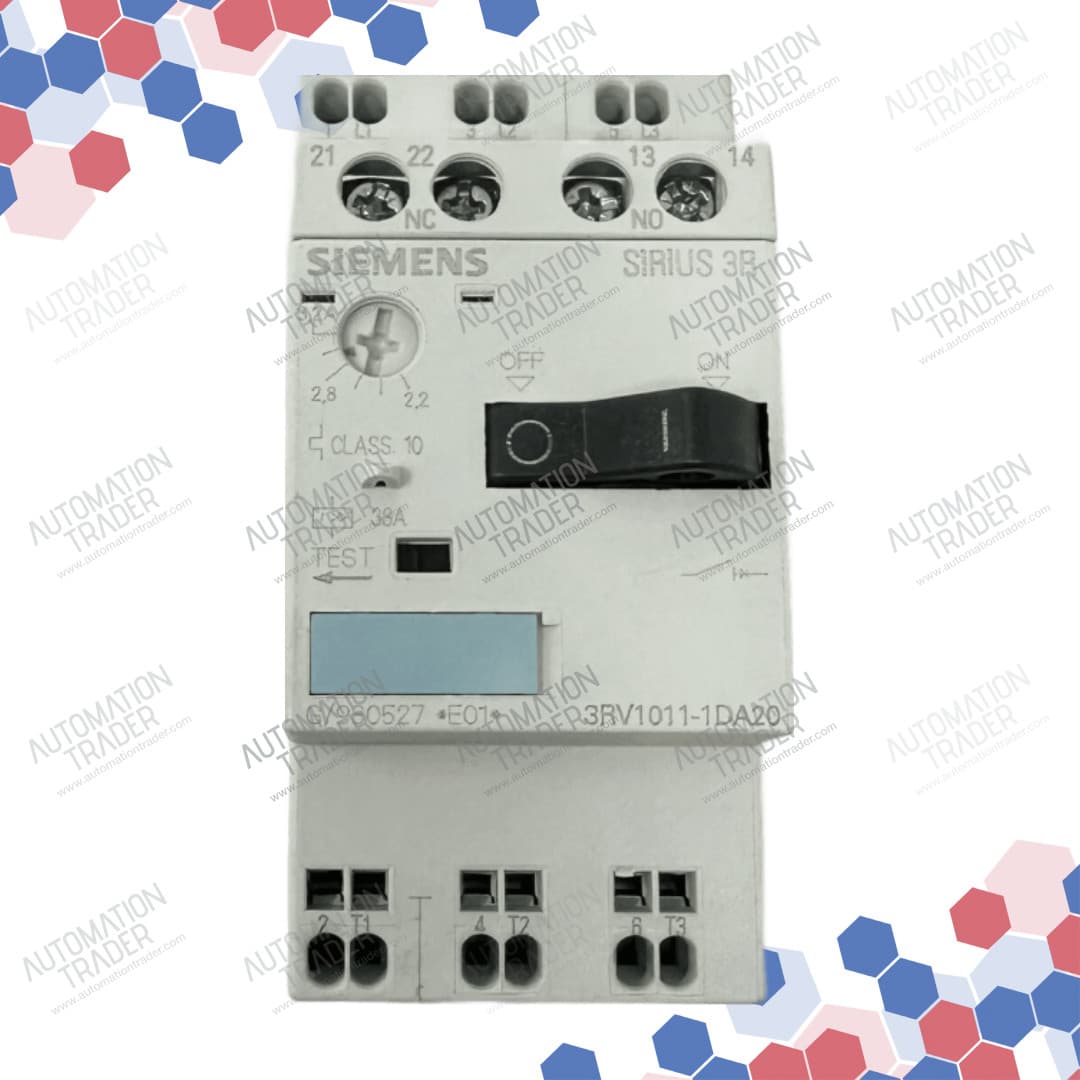

The Siemens 3RV1011-1DA20 is a motor protection circuit breaker from the SIRIUS series, designed to safeguard motors against overloads and short circuits. It features a continuous current rating of 3.2 A, with an adjustable overload release setting between 2.2 and 3.2 A, and a short-circuit release setting at 42 A. The device operates at a rated voltage of 690 V and is suitable for AC-3 duty at 400 V, handling up to 1.1 kW. It is housed in a compact S00 size, measuring 90 mm in length, 45 mm in width, and 81 mm in depth, with a weight of approximately 0.365 kg. The circuit breaker utilizes spring-type terminals for secure electrical connections and has a standard switching capacity. Designed for DIN rail mounting, it offers ease of installation in various industrial settings. The 3RV1011-1DA20 is rated for an insulation voltage of 6,000 V and has a mechanical service life of approximately 100,000 operating cycles, ensuring long-term reliability. This model has been phased out and replaced by the SIRIUS 3RV2 series, with the preferred successor being the 3RV2011-1DA20.

Specifications

Weight	0.13 kgs
Current	2.2 - 3.2 A
Product Type	Motor
Napięcie zasilania	690 V
Signal Type	690
Signal Level	690 V
Relay Specifications	690 VAC
Weight	0.365 kg
Continuous Current Rating	3.2 A
Adjustable Overload Release	2.2 - 3.2 A
Short-Circuit Release Setting	42 A
Rated Voltage	690 V
AC-3 Duty Rating	1.1 kW at 400 V
Dimensions	90 x 45 x 81 mm
Mounting Type	DIN rail
