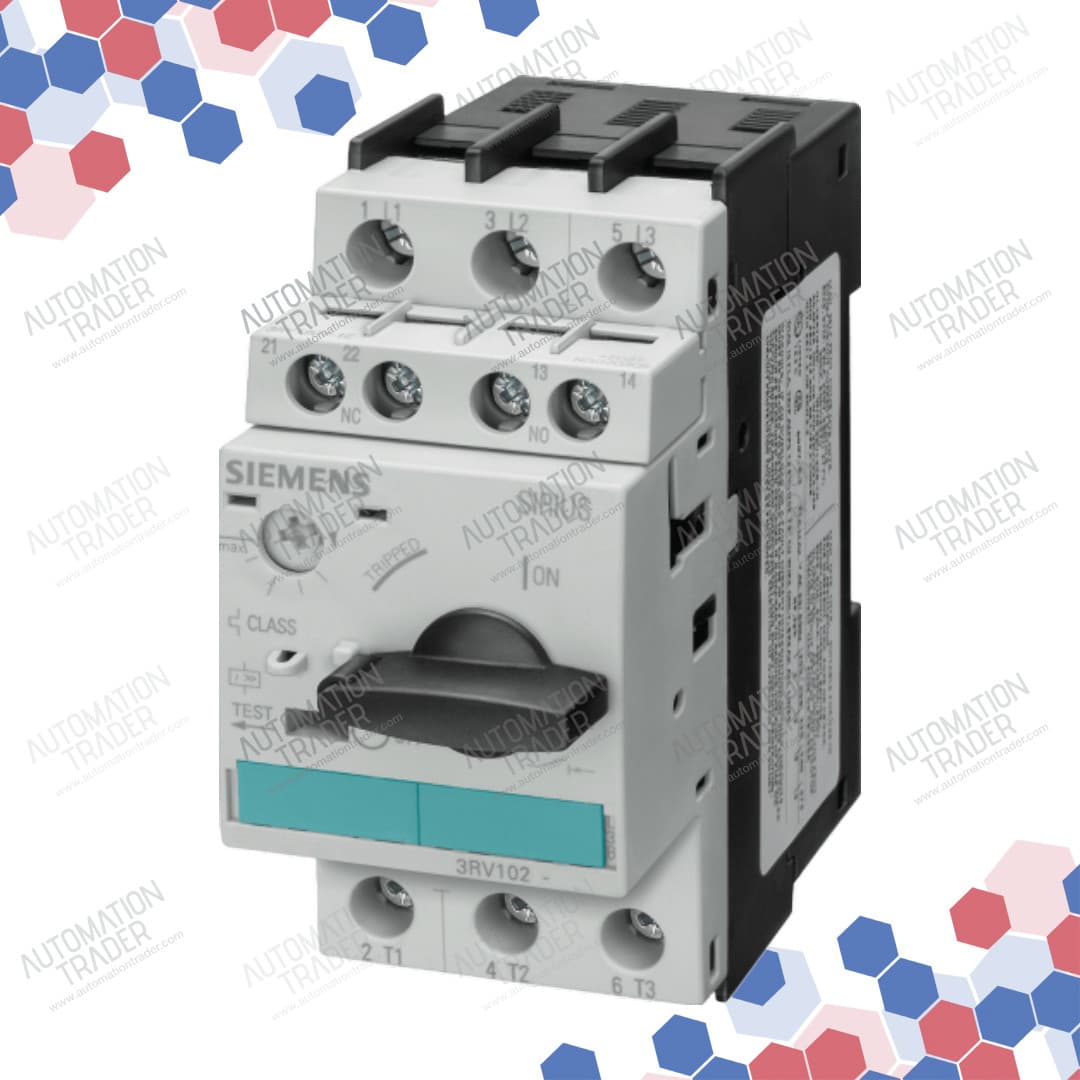

Siemens 3RV1021-4AA15

Name: 3RV1021-4AA15
Brand: Siemens
SKU: 3RV1021-4AA15
Price: 43.63 PLN
Availability: InStock

SKU3RV1021-4AA15

ManufacturerSiemens

CategoryIndustrial automation components

6-month warranty

Available (1-2 days): 1 units

Select Condition

Quantity

Net price (1 pc.):

43,63PLN

Before ordering, make sure the part fits your device.

Free consultation

Delivery

Trusted partners:

International shipping

Dedicated account manager

Real-time tracking

Description

The Siemens 3RV1021-4AA15 is a motor protection circuit breaker from the SIRIUS series, designed to safeguard motors against overloads and short circuits. It features a continuous current rating of 16 A with an adjustable overload release setting between 11 and 16 A, and a short-circuit release setting at 208 A. The device operates at a rated voltage of 690 V and includes a transverse auxiliary switch with one normally open (NO) and one normally closed (NC) contact. It is mounted using screw terminals and has a standard switching capacity. The 3RV1021-4AA15 is classified under protection class IP20 on the front and has a mechanical service life of approximately 100,000 operating cycles. This model has been phased out and replaced by the SIRIUS 3RV2 series, specifically the 3RV2021-4AA15.

Specifications

Weight	0.36 kgs
Napięcie zasilania	600 V
Current	11 - 16 A
Product Type	Motor
Signal Type	600
Signal Level	600 V
Relay Specifications	600 VAC
Rated Voltage	690 V
Continuous Current Rating	16 A
Adjustable Overload Release Setting	11-16 A
Short-Circuit Release Setting	208 A
Auxiliary Switch	1 NO + 1 NC contacts
Protection Class	IP20 IP
Mechanical Service Life	100,000 cycles
