Siemens 7MH4134-6LB00-0DA0

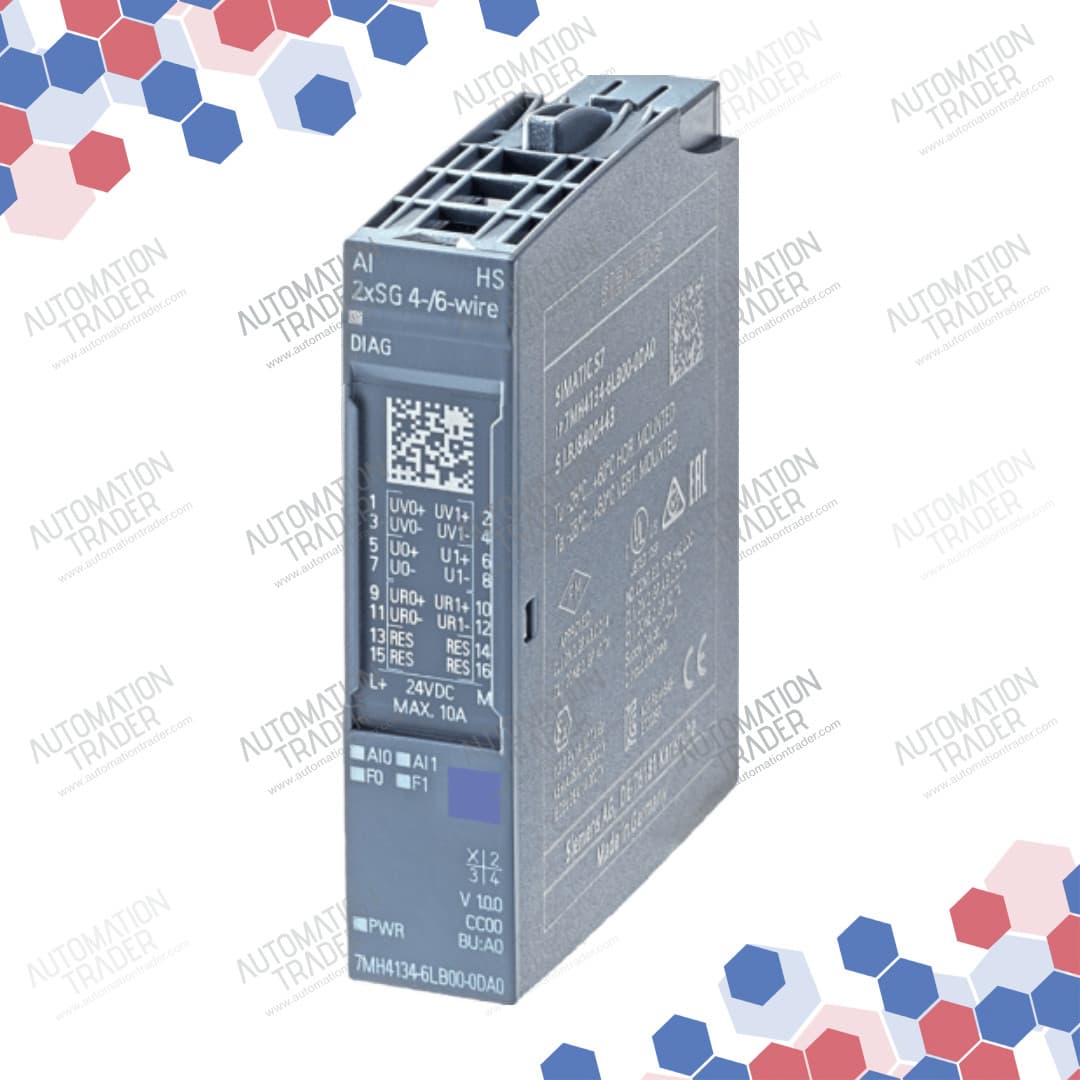

Siemens 7MH4134-6LB00-0DA0 7mh4134-6lb00-0da0 product image 1
SKU7MH4134-6LB00-0DA0
ManufacturerSiemens
CategoryIndustrial automation components
12-month warranty
Available (1-2 days): 21 units
Select Condition
Quantity
1
Net price (1 pc.):
2 301,45PLN
Before ordering, make sure the part fits your device.
Free consultation
Delivery
Trusted partners:
DHLUPSTNTFedEx
International shipping
Dedicated account manager
Real-time tracking
Description
Specifications
Downloads
FAQ
Applications
Related

Description

The Siemens 7MH4134-6LB00-0DA0 is an analog input module designed for the SIMATIC ET 200SP system, specifically tailored for high-speed applications requiring precise strain gauge measurements. This two-channel module interfaces directly with strain gauges (full bridges), offering scalable measuring ranges from ±0.5 to 320 mV/V, and supports both 4-wire and 6-wire configurations. It operates with a supply voltage of 24 V DC, with permissible ranges between 19.2 V and 28.8 V DC, and features reverse polarity protection. The module provides a sensor supply voltage of 4.85 V DC, delivering up to 60 mA per channel, suitable for powering load cells. It supports oversampling, allowing up to 20 kHz sampling rate per channel, and is capable of reparameterization during operation. The module is compatible with BaseUnit type A0 and is identified by the color code CC00. It is compliant with RoHS standards as of March 31, 2015, and is manufactured in Germany.

Specifications

Product ID
7MH4134-6LB00-0DA0
AL Field
N
Customs Tariff Code
85389091
Compliance
Produkt zgodny z RoHS od: 31.03.2015
Configurable Product
False
Country of Origin
DE
EAN
4047623603450.0
ECCN
3A991X
eClass 6
27-32-03-03
eClass 7.1
27-32-03-03
eClass 8
27-32-03-03
eClass Version 9
27-32-03-03
eClass Version 9.1
27-32-03-03
Group Classification Key
R3P5
List of Characteristics
WT10
Quantity in Package
1
Packaging Length
7,60
Packaging Width
6,50
Packaging Height
2,30
Packaging Size
CM
Product Description
SIMATIC ET 200SP, ANALOG INPUT MODULE, AI 2 X SG 4-/6-WIRE HIGH SPEED, FITS TO BU-TYPE A0, COLOR CODE CC00, CHANNEL DIAGNOSIS, 28/16BIT, +/-0,05%, FOR STRAIN GAUGE FULL BRIDGES
Part Number
4909
Comparative Metals Coefficient
31.03.2015
REACH
Lead CAS-Nr. 7439-92-1; Lead monoxide (lead oxide) lblREACHCasNo7368; 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-Nr. 80-05-7
Unit of Measure
ST
UPC
804766522086.0
Weight
40
Article Number
7MH41346LB000DA0
Product Family
Analog input modules
Catalog ID
WT10
Packaging Dimensions
2.559 x 2.992 x 0.906
Package Size Unit of Measure
Inch
Quantity Unit
1 Piece
Color
S
Product Group
4909
Net Weight
0.002 lb
Packaging Quantity
1 pieces
Commodity Code
85389091
