Wago 750-622

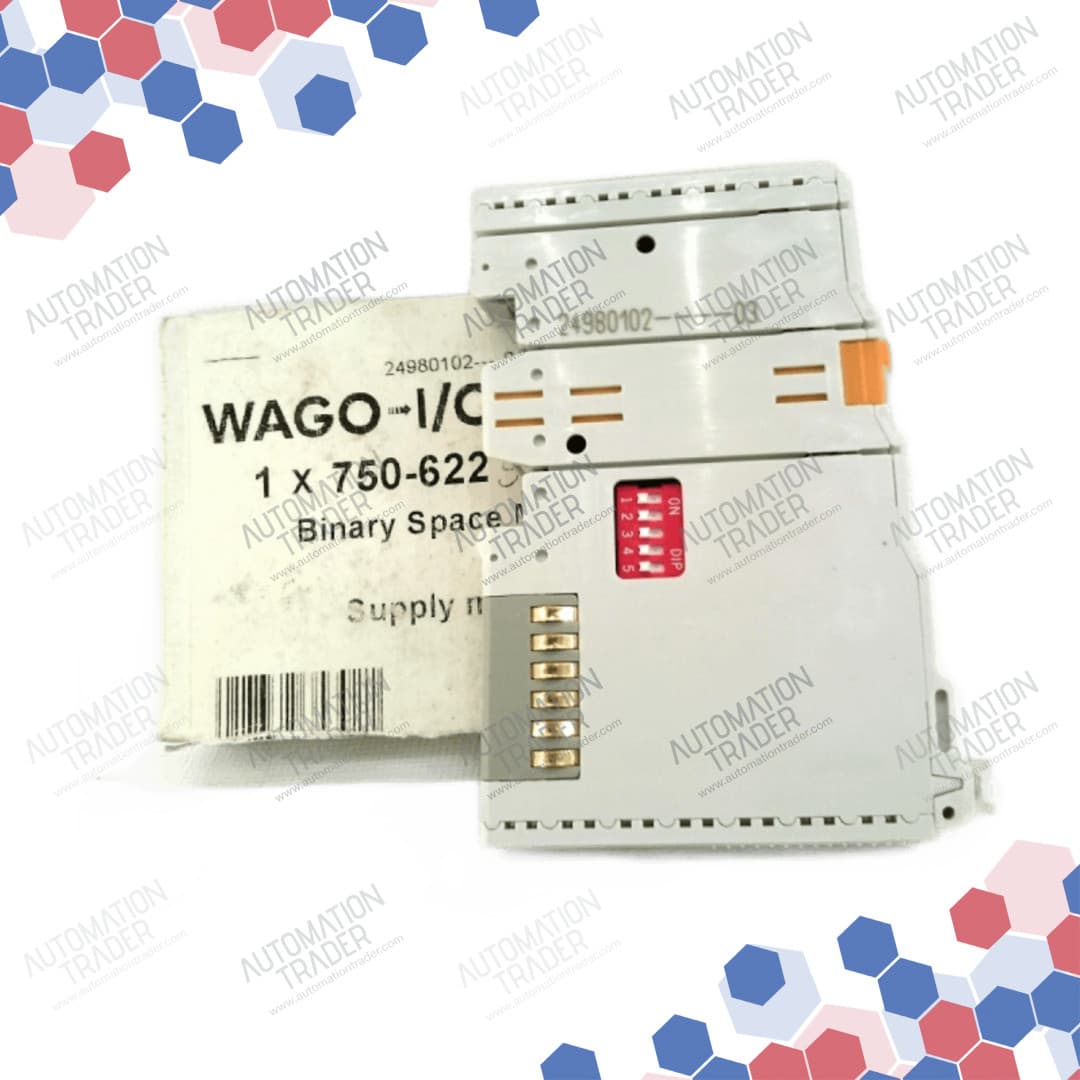

Produktbild: Wago 750-622 750-622, 1
SKU750-622
HerstellerWago
KategorieIndustrielle Automatisierungsteile
12 Monate Garantie
Verfügbar (1-2 Tage): 2 Stück
Zustand wählen
Menge
1
Nettopreis (1 Stk.):
293,24PLN
Prüfen Sie vor der Bestellung, ob das Teil zu Ihrem Gerät passt.
Kostenlose Beratung
Lieferung
Vertrauenswürdige Partner:
DHLUPSTNTFedEx
Internationaler Versand
Persönlicher Ansprechpartner
Sendungsverfolgung in Echtzeit

Beschreibung

The WAGO 750-622 is a Binary Spacer Module designed for the WAGO I/O System 750/753. This module reserves bit addresses in the process image of a fieldbus node, facilitating efficient data management in industrial automation systems. It offers adjustable operating modes and data widths via DIP switches, allowing configurations of 2, 4, 6, or 8 bits. The module also functions as a supply module, providing 24 V field-side voltage to downstream I/O modules through power jumper contacts. Key features include a 500 V isolation between system and field, and a current carrying capacity of 10 A for power jumper contacts. The module is housed in a light gray polycarbonate and polyamide 6.6 enclosure, measuring 12 mm in width, 100 mm in height, and 69.8 mm in depth, with a weight of 44.9 g. It operates within an ambient temperature range of 0 to +55 °C and has an ingress protection rating of IP20. The 750-622 is suitable for applications requiring flexible data width configurations and reliable power distribution in industrial automation environments.

Technische Daten

Produkttyp
Binary Spacer Module
Betriebsmodus
Inputs/Outputs (adjustable via DIP switches)
Data Width
2, 4, 6, or 8 bits (adjustable via DIP switches)
Supply Voltage (Field)
24 VDC (-15 … +20 %)
Supply Voltage (System)
5 VDC; via data contacts
Current Consumption (5 V System Supply)
10 mA
Isolation
500 V system/field
Number of Power Jumper Contacts
3 contacts
Current Carrying Capacity (Power Jumper Contacts)
10 A
Housing Material
Polycarbonate; Polyamide 6.6
Abmessungen
12 mm (W) x 100 mm (H) x 69.8 mm (D)
Gewicht
44.9 g
