Allen-Bradley 1794-IB16

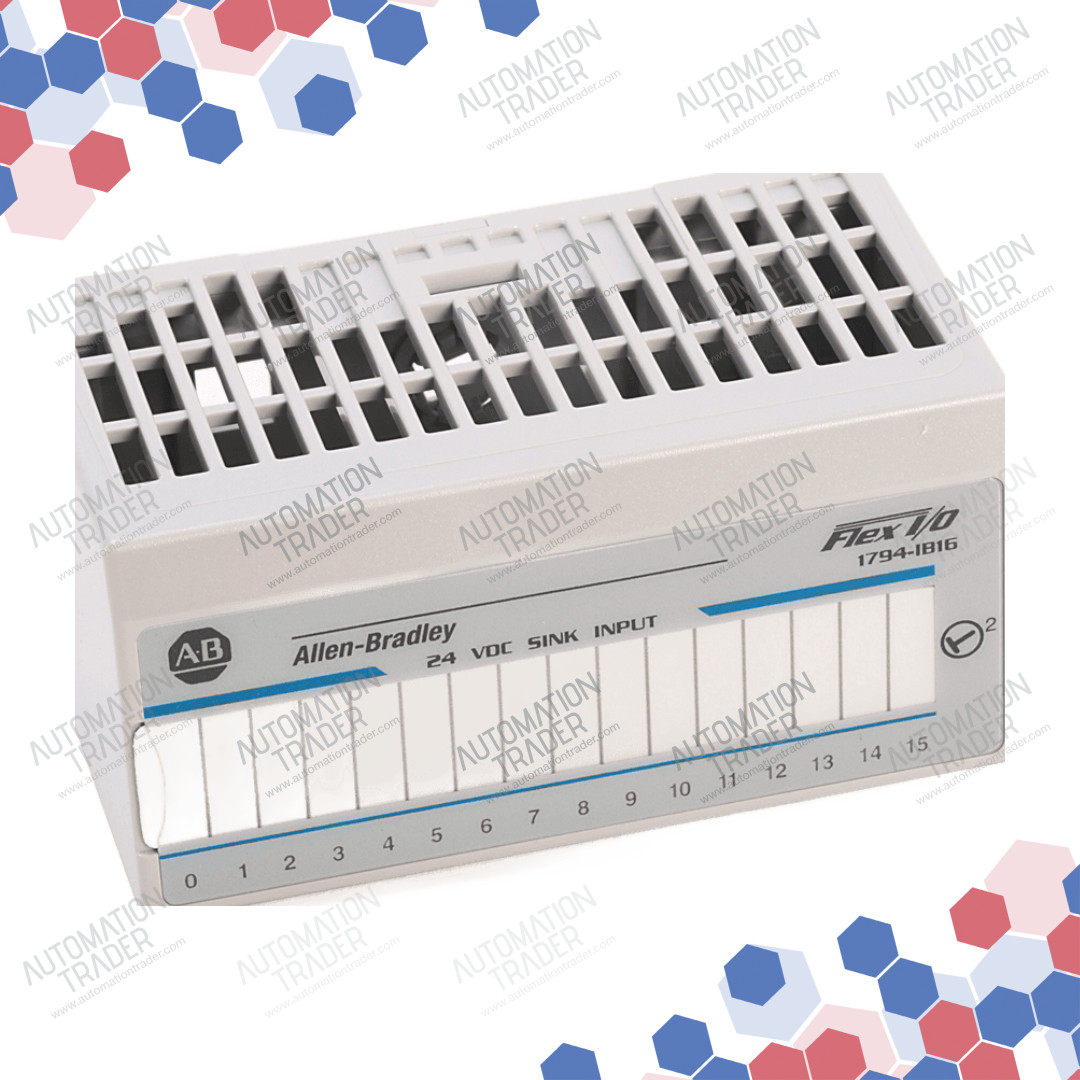

Allen-Bradley 1794-IB16 1794-ib16 product image 1
SKU1794-IB16
ManufacturerAllen-Bradley
CategoryIndustrial automation components
12-month warranty
Available: 15 units
Select Condition
Quantity
1
Net price (1 pc.):
Before ordering, make sure the part fits your device.
Free consultation
Delivery
Trusted partners:
DHLUPSTNTFedEx
International shipping
Dedicated account manager
Real-time tracking
Description
Specifications
Downloads
FAQ
Applications
Related

Description

The Allen-Bradley 1794-IB16 is a 16-point digital input module designed for the Flex I/O system, offering reliable and efficient integration of discrete input signals into industrial automation systems. This module features 16 sinking inputs operating at a nominal voltage of 24V DC, with an input voltage range from 10 to 31.2V DC, accommodating various industrial control applications. Each input channel supports an on-state current up to 12 mA, ensuring precise signal detection. The module is compatible with multiple terminal bases, including 1794-TB3, 1794-TB3S, 1794-TBN, 1794-TB3K, 1794-TB3SK, and 1794-TBNK, facilitating flexible installation options. Designed for DIN rail mounting, it measures 94 x 94 x 69 mm and weighs approximately 0.075 kg, making it suitable for space-constrained environments. Operating within a temperature range of 0 to 55°C (32 to 131°F), the 1794-IB16 is built to withstand industrial conditions. It is UL Listed and CE certified, ensuring compliance with international safety standards. This module is ideal for applications requiring distributed I/O systems, such as machine control, process automation, and material handling, providing a robust solution for integrating digital input signals into automation systems.

Specifications

Weight
0.11 kgs
Product Type
Module
Manufacturer
Allen-bradley
Signal Level
24 V
Napięcie zasilania
24 V
Signal Type
24
Weight
0.075 kg
Product Type
Digital Input Module
Input Voltage Range
10 to 31.2 V DC
On-State Current
up to 12 mA
Terminal Base Compatibility
1794-TB3, 1794-TB3S, 1794-TBN, 1794-TB3K, 1794-TB3SK, 1794-TBNK
