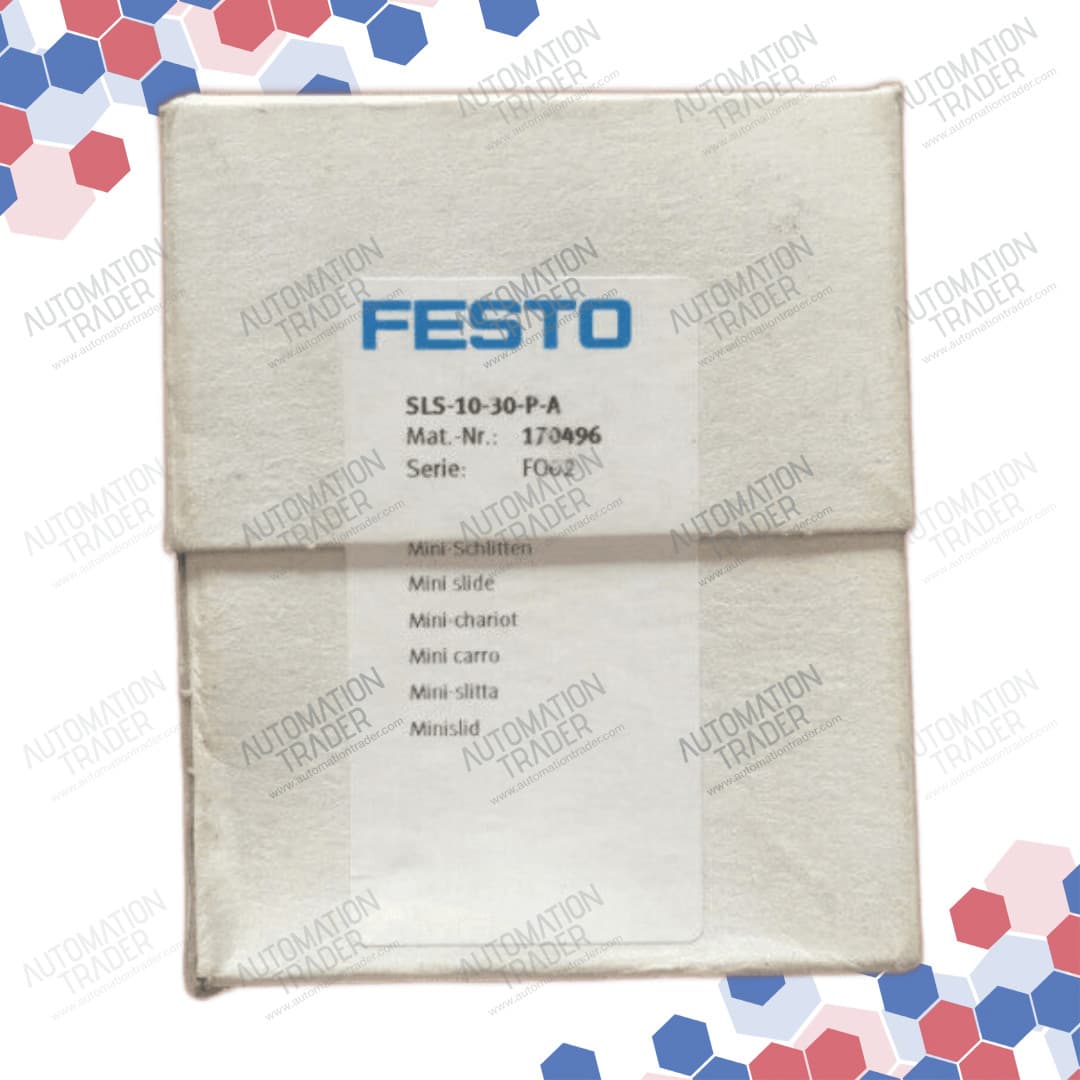

Festo SLS-10-30-P-A

SKUSLS-10-30-P-A

ManufacturerFesto

CategoryIndustrial automation components

12-month warranty

Available (1-2 days): 1 units

Select Condition

Quantity

Net price (1 pc.):

1 292,91PLN

Before ordering, make sure the part fits your device.

Free consultation

Delivery

Trusted partners:

International shipping

Dedicated account manager

Real-time tracking

Description

The Festo SLS-10-30-P-A is a compact mini slide actuator designed for precise linear motion in industrial automation applications. With a stroke length of 30 mm and a piston diameter of 10 mm, this double-acting actuator operates efficiently within an operating pressure range of 1 to 10 bar (14.5 to 145 psi). It features a yoke drive unit and elastic cushioning rings at both ends, ensuring smooth operation and minimal impact. The actuator is equipped with a ball bearing cage guide for enhanced stability and can be mounted in any position, offering flexibility in system design. Position sensing is facilitated via proximity sensors, and the actuator is compatible with compressed air as per ISO 8573-1:2010 [7:4:4]. Designed for durability, it operates effectively in ambient temperatures ranging from -20°C to 60°C. The actuator's corrosion resistance class is 0, indicating no corrosion stress, and it conforms to LABS (PWIS) standard VDMA24364-B2-L. The theoretical force at 6 bar for the retracting stroke is 39 N, and for the advancing stroke, it is 47 N. The moving mass is 62 g, and the product weight is 191 g. For detailed specifications and technical data, refer to the official Festo datasheet.

Specifications

Weight	0.45 kgs
I/O Channels	2 channels
Manufacturer	Festo
I/O Configuration	2
Stroke Length	30 mm
Piston Diameter	10 mm
Operating Pressure	1 to 10 bar
Mounting Position	Any
Ambient Temperature	-20 to 60 °C
