Siemens 3NA3824-7

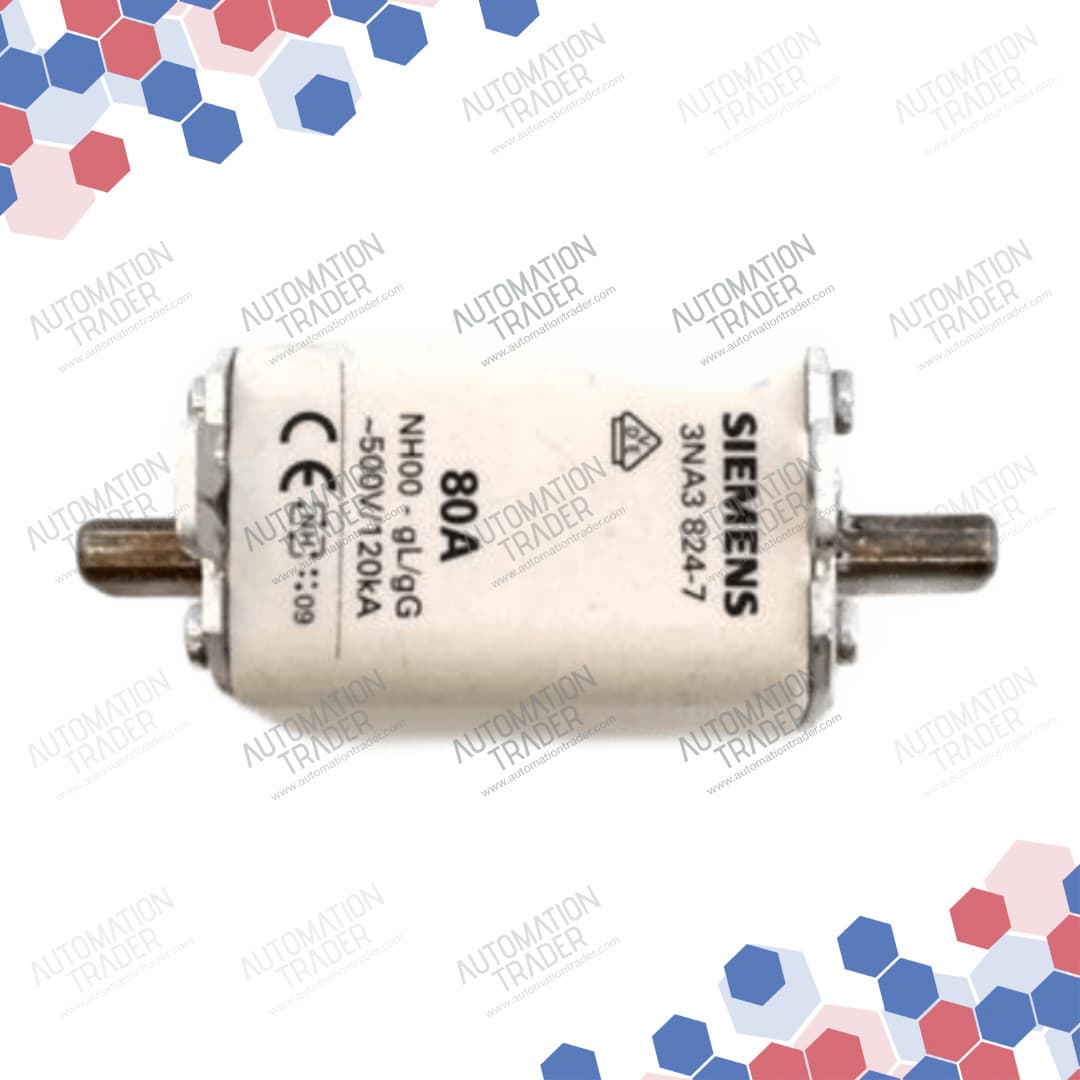

Siemens 3NA3824-7 3na3824-7 product image 1
SKU3NA3824-7
ManufacturerSiemens
CategoryIndustrial automation components
12-month warranty
Available (1-2 days): 90 units
Select Condition
Quantity
1
Net price (1 pc.):
31,37PLN
Before ordering, make sure the part fits your device.
Free consultation
Delivery
Trusted partners:
DHLUPSTNTFedEx
International shipping
Dedicated account manager
Real-time tracking

Description

The Siemens 3NA3824-7 is a low-voltage high rupturing capacity (LV HRC) fuse link designed for industrial applications requiring reliable overcurrent protection. This fuse element is part of Siemens' SENTRON series, known for its robust performance and safety features. The 3NA3824-7 model is rated for a continuous current of 80 A and operates at a rated voltage of 500 V AC and 250 V DC, making it suitable for both alternating and direct current circuits. It features a front indicator for easy status monitoring and non-insulated grip lugs for secure electrical connections. The fuse link is housed in a NH00 size, adhering to the DIN EN 60269-1 standard, ensuring compatibility with various fuse bases. With a breaking capacity of 120 kA at AC and 25 kA at DC, it provides effective protection against short circuits and overloads. The fuse operates within an ambient temperature range of -5°C to 40°C and has a power loss of 5.8 W at rated current, indicating efficient energy usage. Compliance with the RoHS directive since June 1, 2006, ensures the product meets environmental standards. The 3NA3824-7 is manufactured in Greece and is classified under the commodity code 85361090.

Specifications

Aluminium Weight
0
Argent Weight
0
Customs Tariff Code
85361090
Copper Weight
0
EAN
4001869071091.0
Quantity in Package
1
Part Number
5530
UPC
754554887777.0
Weight
199
Product Description
WKŁADKA TOPIKOWA NH, 500V, WLK. 00, 80A, KLASA gG, WERSJA STANDARD, ZACZEPY NIEIZOLOWANE,
Compliance
Produkt zgdony z RoHS od: 01.06.2006
Product ID
3NA3824-7
AL Field
N
Configurable Product
False
Country of Origin
GR
ECCN
N
eClass 6
27-14-20-05
eClass 7.1
27-14-20-05
eClass 8
27-14-20-05
eClass Version 9
27-14-20-05
eClass Version 9.1
27-14-20-05
ETIM 7
EC000055
Group Classification Key
P310
List of Characteristics
LV10.1
Metals Coefficient
L-P-----
Packaging Length
95,00
Packaging Width
83,00
Packaging Height
67,00
Packaging Size
MM
Comparative Metals Coefficient
01.06.2006
Unit of Measure
ST
